Higher Degree of Innovation.

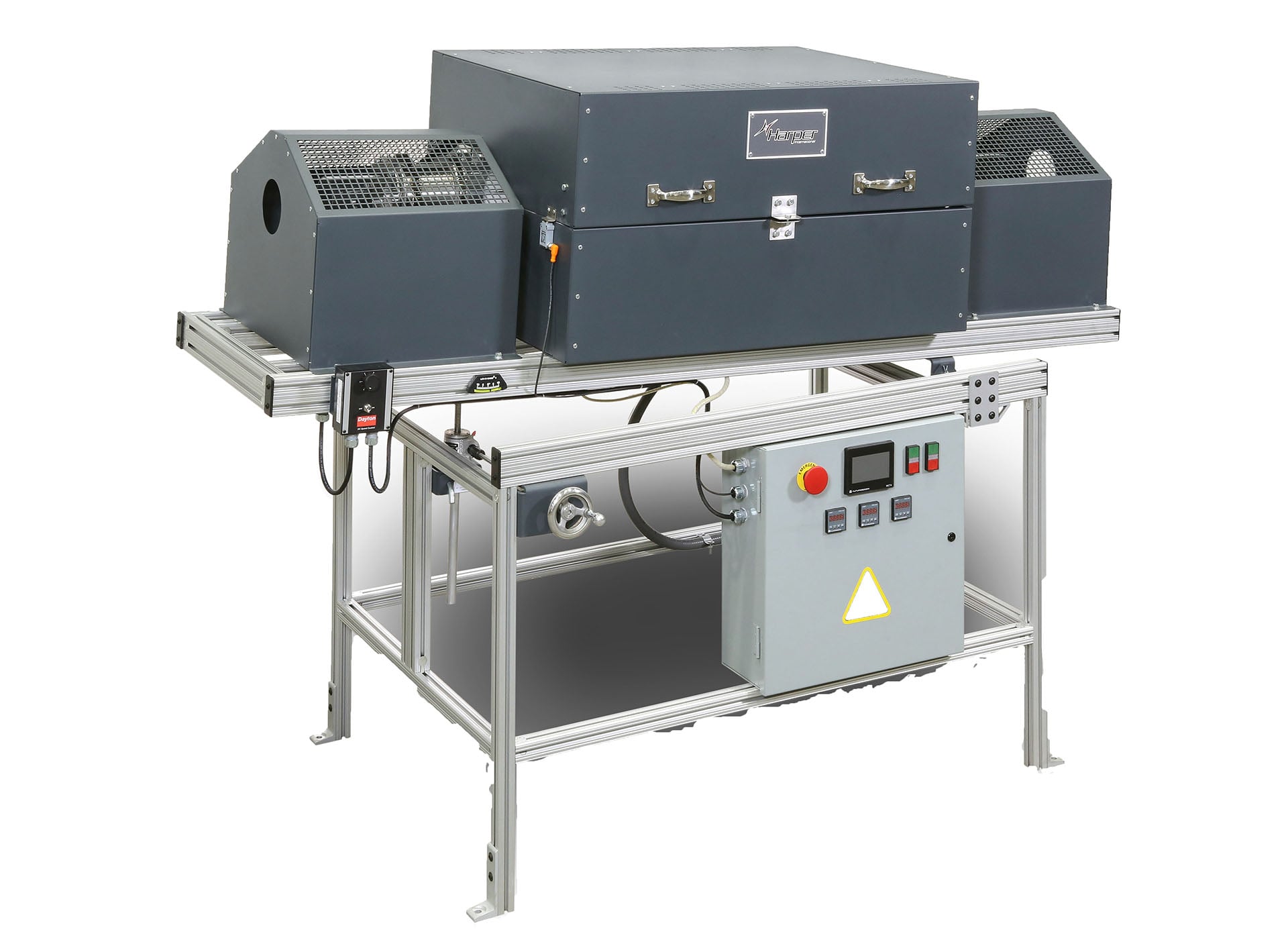

At Harper, temperatures are not the only things rising to the challenge. Optimization of process parameters is critical prior to investment in thermal process equipment to ensure capability and quality requirements are achieved. Our rotary furnaces offer exceptional versatility, reliability, and energy efficiency.
| Temperature | Up to 1200 °C |
|---|---|
| Full Dimensions | 40.5” W x 84.5” L x 61” H (1030mm W x 2150mm L x 1550mm H) @ 0 ° inclination |
| Heated Length | Up to 30 in (762 mm) |
| Tube Diameter | Up to 4 in (102 mm) |
| Tube Material Design | Alloy, Ceramic or Quartz |
| Input Power | 46.3 FLA at 208 Volts or 51.7 FLA at 240 Volts +/- 5%, 50/60 Hertz |
| Control | 3 Zone, Independent control loops Type K Thermocouples Advanced Profile programming with ramp, soak, jump cycle, hold and event function for each step (up to 64 steps per profile) |
| Data & Features | Paperless Recorder/Data Logger (CFR21 Part 11 & AMS 2750E) Trend viewer/data viewer File transfer/backup via LAN/WAN/Cloud |
| Optional Upgrades | Volumetric Feeding Equipment Gas-tight Rotary Seals package Atmosphere Supply package for Inert, Hydrogen, or other gasses Collection canister with air-lock valve |
